PBS Diamond Router Bits

Our Diamond Router Bits feature PBS bonded technology, where the diamonds are individually brazed in place. This promotes high diamond exposure and eliminates the loss of diamond particles through pull-out.

With PBS cutting tools, the abrasive section will not strip or peel, which results in increased productivity and is long-lasting with less loading, faster cutting and cooler running.

The diamond router bits feature:

PBS Diamond bonded technology
40 Mesh diamond
2 Flutes (except TP592A)

Also available as Electroplated

Electroplated Diamond Parallel Routers

The electroplated diamond parallel router, ERP type, has a flat head and is for routing, rebating and trimming glass reinforced plastic, GRP, carbon fibre and plastic composites or similar materials. This electroplated diamond router has been developed to perform many different functions from trimming or routing the unwanted section off fibreglass mouldings to routing deep rebates in laminates. A selection of popular diamond routers are kept in stock for immediate delivery or can be manufactured to specific customer requirements.

OPTIONS:
Type

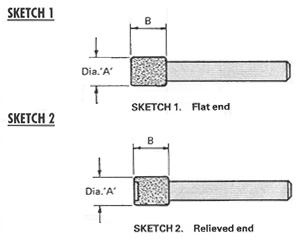

Flat End (Sketch 1)
Relieved End (Sketch 2)

Diameters – 4 – 25mm
Diamond Coating Length “B – 12.5, 19, 25mm
Grades – 36/44, 44/60

Note:
Standard grade of diamond 44/60 but where speed of cut is more important than finish use 36/44.
Other grades and sizes available on request.
When ordering please state Code and Size of Shank required. We will supply according to Sketch 1, unless otherwise requested.

For more information on diamond cutting tools, browse through our latest brochure. You can view it on-screen within moments of downloading it, simply by clicking on the link below.

Download the William Lees Tools Brochure for full product details
