Chicago Pneumatic Air Drill CP9790C - Wm. Lees & Sons - Aircraft and Sheet Metal Tooling

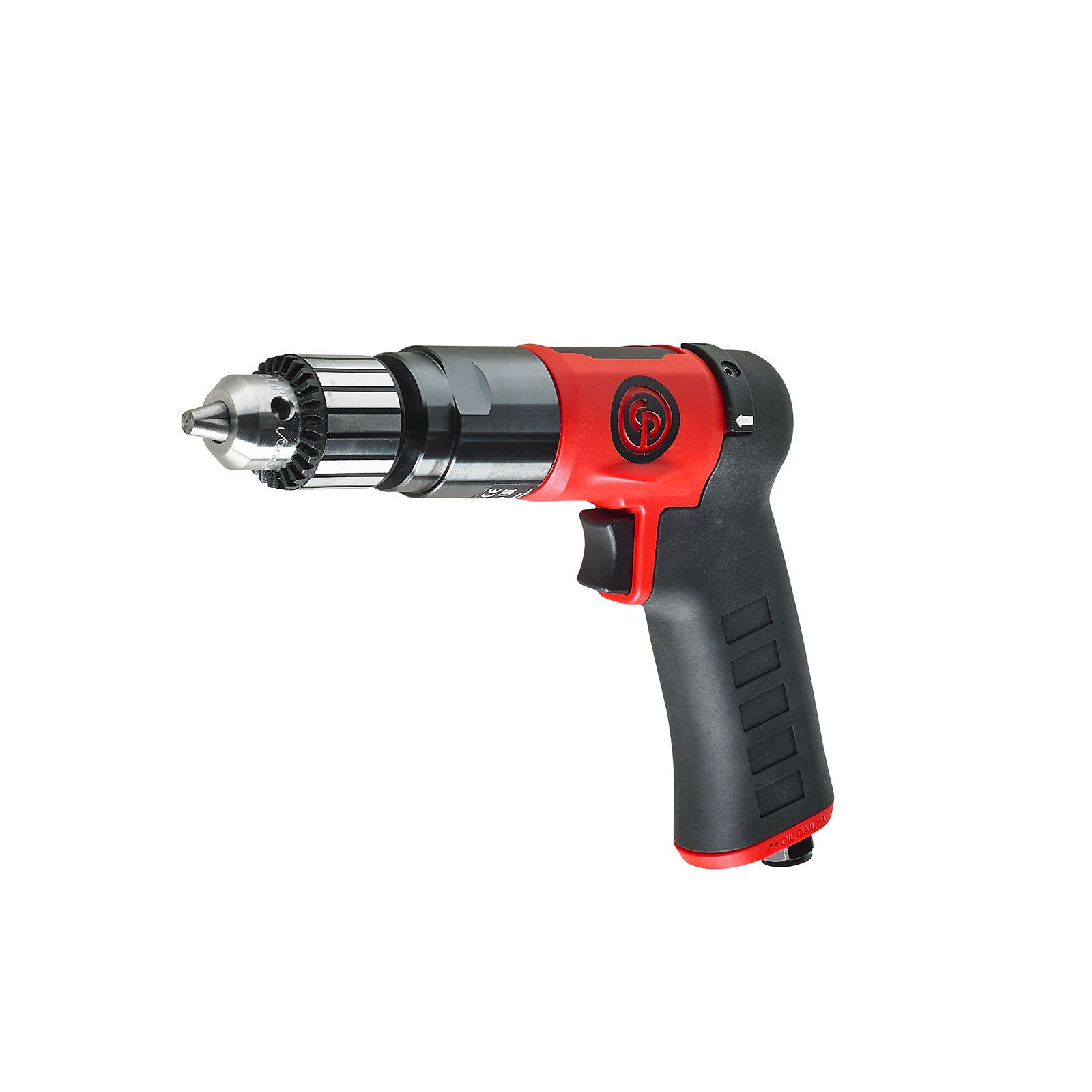

CP9790C Pistol Air Drill 2000rpm

Name: CP9790C Pistol Air Drill 2000rpm
SKU: 3963
Price: 108.00 GBP
Availability: OutOfStock

£108.00 inc Vat

Designed for body shops or general maintenance applications such as drilling, honing, reaming and hole sawing, the CP7300 / CP928X / CP978X / CP979X Series offers high comfort with its composite housing with thermoplastic rubber handle grip, its wings on right & left sides to guide the forefinger and its handle exhaust

Out of stock

Categories: Shop, Air Tools & Accessories, Drills

CP9790C Benefits

High Comfort
Ergonomics
Excellent Speed Control
High resistance to stalls
Great handling
Operator friendly
High durability
Supplied with high quality industrial Jacobs® chucks for longer use
– Keyed Metal

Features

Composite housing with thermoplastic rubber handle grip
Wings on right & left sides to guide the forefinger
Large teasing trigger and progressive valve allowing more control to start holes
Low speed gear box
Flat back part for better pushing action while drilling and tapping
Reverse lever on the top for easier access
handle exhaust allowing the air to flow away from the operator
Supplied with high quality industrial Jacobs® chucks for longer use
– Keyed Metal
Excellent for drilling, honing, reaming and hole sawing

Model	CP9790C
Chuck capacity	10 mm	3/8″
Free speed	2000 rpm
Power	270 W
Stall torque	4.8 Nm	3.5 ft.lbs
Net weight	1.4 kg	3 lb
Length	165 mm	6.5″
Average air consumption	2.8 l/s	6 cfm
Average air consumption	169.8 l/mn	6 cfm
Actual air consumption	11 l/s	24 cfm
Actual air consumption	679 l/mn	24 cfm
Free speed air consumption	11.5 l/s	24.364406779661 cfm
Air inlet thread size	0.25 “
Min. hose size	10 mm	3/8″
Sound pressure	89 db(A)
Sound Power	100 db(A)
Vibration (ISO-8662-6)	<2.5 m/s²
Vibration α (ISO-28927-5)	<2.5 m/s²
Vibration K (ISO-28927-5)	– m/s²

For our range of drills and accessories, click here
