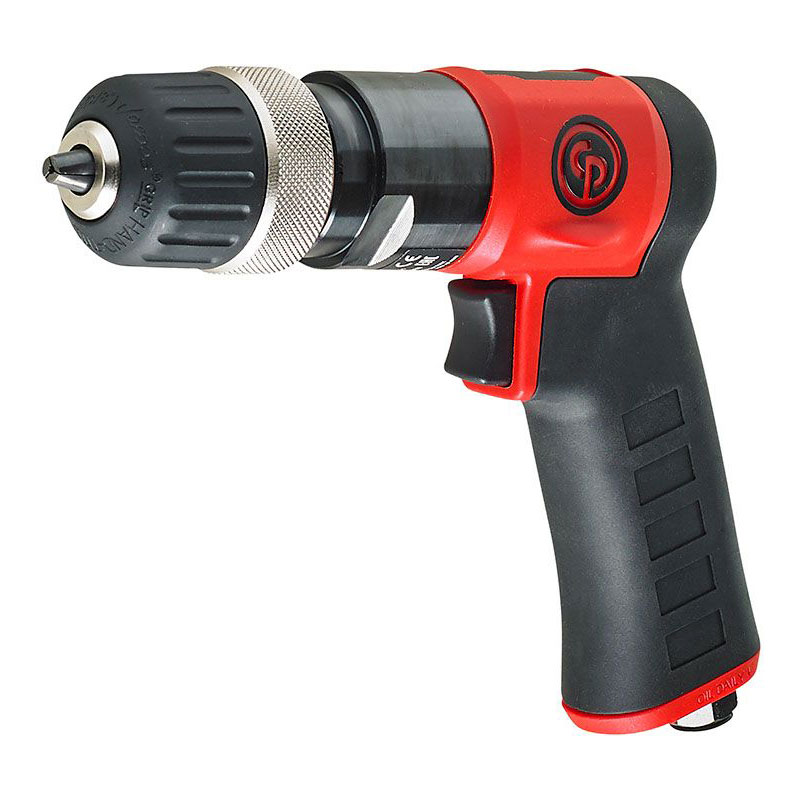

CP9287C Chicago Pneumatic 3/8 Pistol Grip Air Drill 2000rpm

£150.00 inc Vat

3/8″ (10mm) Heavy Duty Pistol Drill
2000 rpm
1.4 kg
0.37 hp motor
Industrial quality Jacob’s keyless Chuck
Reversible

1 in stock

Categories: Air Tools & Accessories, Drills, Shop

CP9285C Pistol Drill Description

A powerful and reliable Keyless Composite Pistol Drill from Chicago Pneumatic. For Vehicle Service and MRO.

Features and Benefits
• Composite housing with a comfortable thermoplastic rubber handle grip
• Wings on right & left sides to easily guide the forefinger
• Large teasing trigger and progressive valve allows for precise control to start
holes
• Low speed gear box for excellent torque and versatility
• Flat back part for better pushing action while drilling and tapping
• Handle exhaust allowing the air to flow away from the operator
• Supplied with high quality industrial Jacobs® chucks for longer use

Typical Applications
• Excellent performance when drilling, honing, reaming and hole sawing

CP9287C Pistol Drill – 3/8″ Keyless chuck

Weight	1.1 KG
Part Number	8941097920
EAN	015451777470
Air Inlet Thread Size (in.)	1/4″
Average Air Consumption	3.25 l/s (6.9 cfm)
Box dimensions	242.5×172.5×53.5 mm (9.5×9.8×2.1″)
Chuck capacity	10 mm (3/8″)
Collet / spindle size (in.)	3/8-24″
European Directives	2006/42/EC (17/05/2006)
European Sound standard	ISO 15744
European Standards	EN ISO 11148-3:2012
Free Speed (RPM)	2100
Free speed air consumption	13 l/s (27.5 cfm)
Height (mm / in.)	150 mm (5.9″)
Length (mm / in.)	235 mm (9.25″)
Manufacturer	Chicago Pneumatic
Min. Hose Size (mm / in.)	10mm / (3/8″)
Over carton	1200x800x630 mm (47.2×31.5×24.8″)
Power	360 W (1/2 hp)
Side to center	51 mm (2″)
Sound Power db(A)	98.5
SoundDBA Pressure	87.1
Stall torque (Nm / ft.lbs)	5 1/2 Nm (4.1 ft.lbs)
Vibration m/s²	<2.5 m/s²
Vibration ISO	ISO-28927-5
USP	Ergonomic
