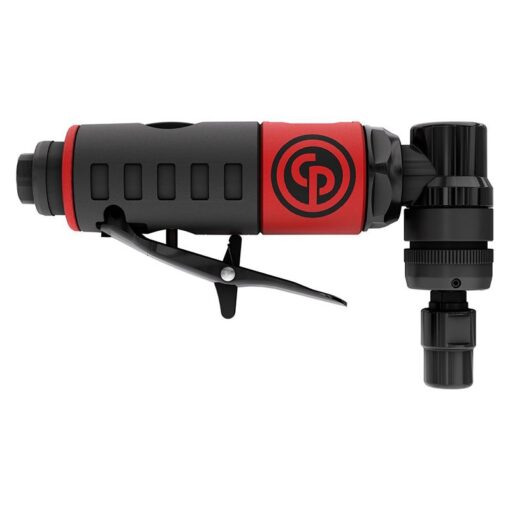

CP7406 Angle Die Grinder 23000rpm

Chicago Pneumatic CP7406 Angle Die Grinder 1/4 Inch + 6mm Collet (replaces CP91106QB)

The Chicago Pneumatic CP9106QB Angle Die Grinder is a compact and lightweight tool designed for easy maneuverability. With a free speed of 23,000rpm, this die grinder is well suited to general maintenance applications where limited space is a factor due to its small 160mm length.

Features:

• General maintenance application
• High operator comfort
• Power and performance
• Ideal for limited space applications
• Rubber over mould grip
• Swivel air inlet
• Built-in air regulator
• 0.32 hp (240W) motor
• Low noise level: only 81 dB(A)
• Rear exhaust
• Includes 1/4″ and 6 mm collets

Specification:

• Part number: 6151952106
• Model: CP9106QB Angle Die Grinder
• Collet size: 1/4″ 6.35 mm
• Free speed: 23000 rpm
• Power: 0.32 hp 240 W
• Rear exhaust Rear exhaust
• Length: 6,5 165
• Sound pressure: 80 db(A)
• Sound Power: 91 db(A)
• Vibration (ISO-8662-13): <2.5 m/s_
• Vibration α (ISO-28927-12): 5.1 m/s_
• Vibration K (ISO-20643) 2.6 m/s_
• Average air consumption: 4.35 cfm 123.11320754717 l/mn
• Actual air consumption: 8.692 cfm 246.22641509434 l/mn
• Free speed air consumption: 19.3 cfm
• Min. hose size: 3/8″ 10 mm
• Air inlet thread size: 0.25 “
• Weight: 0.7 kg
