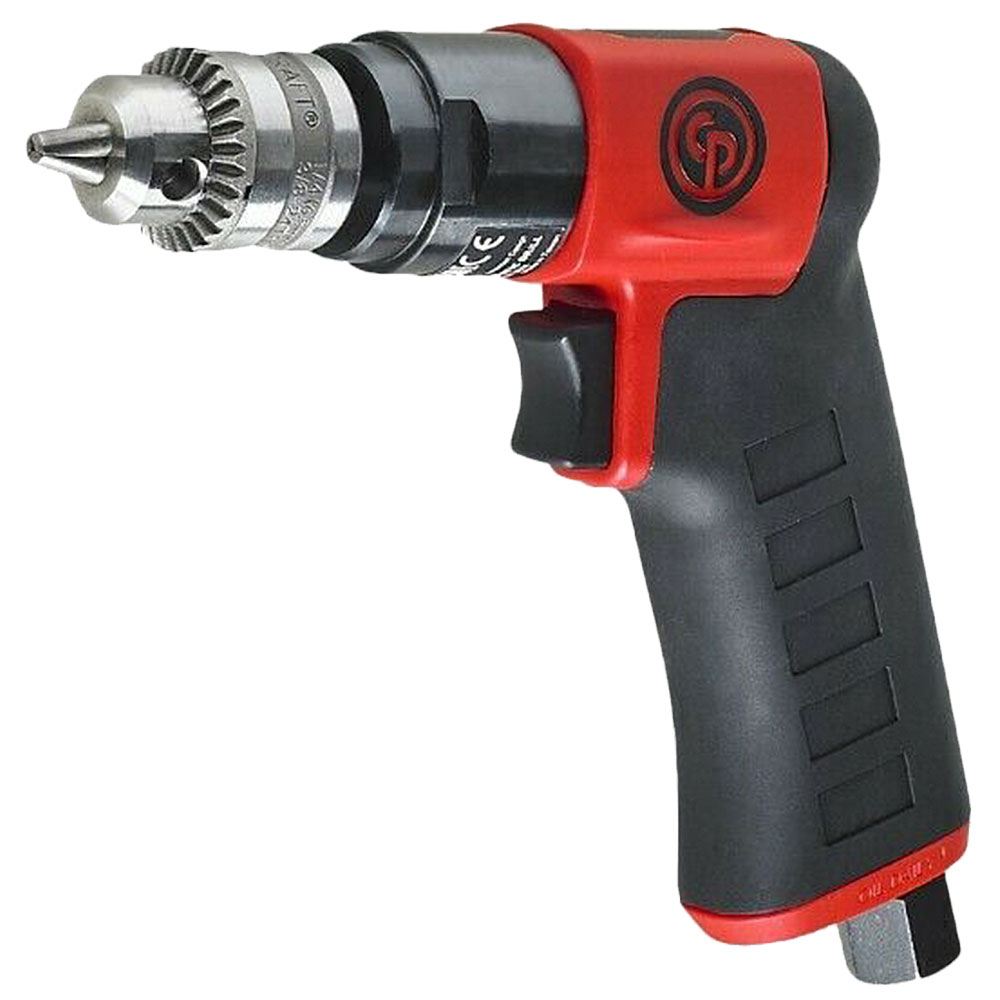

CP7300C Pistol Air Drill 3300rpm

Name: CP7300C Pistol Air Drill 3300rpm
SKU: 1091
Price: 120.00 GBP
Availability: OutOfStock

£120.00 inc Vat

Out of stock

Categories: Shop, Air Tools & Accessories, Drills

CP7300C

Benefits

High Comfort
Ergonomics
Excellent Speed Control
High resistance to stalls
Great handling
Operator friendly
High durability
Supplied with high quality industrial Jacobs® chucks for longer use
– keyed Metal

Features

Composite housing with thermoplastic rubber handle grip
Wings on right & left sides to guide the forefinger
Large teasing trigger and progressive valve allowing more control to start holes
Low speed gear box
Flat back part for better pushing action while drilling and tapping
Handle exhaust allowing the air to flow away from the operator
Supplied with high quality industrial Jacobs® chucks for longer use
– keyed Metal
Excellent for drilling, honing, reaming and hole sawing

Model	CP7300C
Chuck capacity	1/4″	6 mm
Collet / spindle size	3/8-24
Free speed	3000 rpm
Power	0.3 hp
Stall torque	2.4 ft.lbs	3.3 Nm
Net weight	1.4 lb	0.61 kg
Length	5″	127 mm
Average air consumption	4.1 cfm	116 l/mn
Actual air consumption	16.4 cfm	464 l/mn
Free speed air consumption	15.4661016949153 cfm
Air inlet thread size	0.25 “
Min. hose size	3/8″	10 mm
Sound pressure	86 db(A)
Sound Power	97 db(A)
Vibration (ISO-8662-6)	<2.5 m/s²
Vibration α (ISO-28927-5)	<2.5 m/s²
Vibration K (ISO-28927-5)	– m/s²

For our range of drills and accessories, click here
